Windmesser
AM-4836V AM-4836C
| Spezifikation |
Modell |
| AM-4836C |
AM-4836V |
| Messbereich |
Windgeschwindigkeit |
0,4 ~ 45.0m / s; 1,4 ~ 62.0km / h; 80 ~
8860ft/min; 0,8 ~ 88,0 Knoten |
| Windströmung |
0,004 ~ 9999CMM (m³ / min); 0,013 ~ 9999CFM (ft
³ / min) |
| Wind Skala |
0 ~ 12 Level |
| Wellenhöhe |
0 ~ 14 m |
| Windrichtung |
16 Richtung |
- |
| Temperatur |
32to140 (0to60) |
| Genauigkeit |
± 2% +2 D |
| Auflösung |
0.1 |
| Computer-Schnittstelle |
RS232C |
| Memory |
24 Gruppen |
| Warnanzeige bei niedriger Batteriespannung |
| Automatische Abschaltung |
| Stromversorgung |
4x1.5V AAA-Batterie |
| Dimension |
156x67x78mm |
| Lieferumfang |
Hauptgerät |
1 |
| Tragetasche |
1 |
| Bedienungsanleitung |
1 |
| Optionales Zubehör |
Kabel und Software für RS-232S-Schnittstelle
|
| AC-Adapter |
|
 |
 |

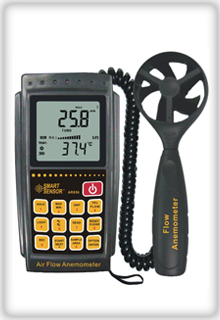

Windmesser
AR856
Digital anemometer in measure
wind speed as the basic function, increase
the calculation, measuring temperature and
relative air temperature with a combination
of a variety of functions such as series of
instrumentation. This is a kind of portable,
has the low speed, multifunctional
intellectualized measurement in the basic
instruments, heating, ventilation, air
conditioning, environmental protection,
energy conservation monitoring, meteorology,
agriculture, refrigerating, drying, labor
health survey, clean workshop, chemical
fiber and textile, various aspects of wind
laboratory wide range of purposes
|
SPECIFICATIONS |
|
| Wind Speed
Measuring Range |
0.3~45m/s |
| Accuracy of
Temperature |
±3%±0.1dgt |
| Air Velocity
Unit |
m/s,Ft/min,Knots,km/h,Mph |
| Wind Volume
Range |
0~999900m3/min |
| Max/Min wind
speed measurin |
√ |
| Temperature
Measuring Range |
0~45℃ |
| Accuracy of
Temperature |
±2℃ |
| ℃/℉ Selection |
√ |
| Backlight Display |
√ |
| Low Battery
Indication |
√ |
|
Analog Quantity
Display
|
√ |
| Resolution |
0.1m/s |
| USB Transmission |
USD |
| Data Store |
500 stock |
| PACKING
INFORMATION |
|
| Power |
9V DC battery |
| Product Net
Weight |
280g |
| Product Size |
175*165*50mm |
| Packing |
Gift box |
| Standard
Quantity Per Carton |
20pcs |
| Standard Carton
Size |
62.5*45*28.5cm |
| Standard Carton
Gross Weight |
11kg |
|
 |

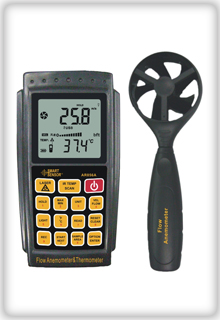

Windmesser
AR856A
| SPECIFICATIONS |
|
| Wind Speed Measuring Range |
0.3~45m/s |
| Accuracy of Temperature |
±3%±0.1dgt |
| Air Velocity Unit |
m/s,Ft/min,Knots,km/h,Mph |
| Wind Volume Range |
0~999900m3/min |
| Max/Min wind speed measurin |
√ |
| Temperature Measuring Range |
0~45℃ |
| Accuracy of Temperature |
±2℃ |
| Infrared Temperature Measurement |
-50~300℃ |
| Backlight Display |
√ |
| Low Battery Indication |
√ |
|
Analog Quantity Display
|
√ |
| Resolution |
0.1m/s |
| USB Transmission |
USD |
| Data Store |
500 stock |
| PACKING INFORMATION |
|
| Power |
9V DC battery |
| Product Net Weight |
300g |
| Product Size |
170*160*49mm |
| Packing |
Gift box |
| Standard Quantity Per Carton |
12pcs |
| Standard Carton Size |
62.5*45*28.5cm |
| Standard Carton Gross Weight |
13kg |
|
 |
Windmesser
AR836+
| SPECIFICATIONS |
|
| Wind Speed Measuring Range |
0.3~45m/s |
| Accuracy of Temperature |
±3%±0.1dgt |
| Air Velocity Unit |
m/s,Ft/min,Knots,km/h,Mph |
| Average wind speed measuring |
√ |
| Max/Min wind speed measurin |
√ |
| Temperature Measuring Range |
0~45℃ |
| Accuracy of Temperature |
±2℃ |
| ℃/℉ Selection |
√ |
| Backlight Display |
√ |
| Low Battery Indication |
√ |
|
Analog Quantity Display
|
√ |
| Resolution |
0.1m/s |
| USB Transmission |
--- |
| Data Store |
--- |
| PACKING INFORMATION |
|
| Power |
9V DC battery |
| Product Net Weight |
240g |
| Product Size |
170*160*49mm |
| Packing |
Gift box |
| Standard Quantity Per Carton |
20pcs |
| Standard Carton Size |
62.5*45*28.5cm |
| Standard Carton Gross Weight |
16.5kg |
|
 |

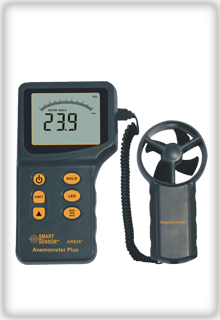

AR826+
| SPECIFICATIONS |
|
| Wind Speed Measuring Range |
0.3~45m/s |
| Accuracy of Temperature |
±3%±0.1dgt |
| Air Velocity Unit |
m/s,Ft/min,Knots,km/h,Mph |
| Average wind speed measuring |
√ |
| Max/Min wind speed measurin |
√ |
| Temperature Measuring Range |
--- |
| Accuracy of Temperature |
--- |
| ℃/℉ Selection |
--- |
| Backlight Display |
√ |
| Low Battery Indication |
√ |
|
Analog Quantity Display
|
√ |
| Resolution |
0.1m/s |
| USB Transmission |
--- |
| Data Store |
--- |
| PACKING INFORMATION |
|
| Power |
9V DC battery |
| Product Net Weight |
240g |
| Product Size |
170*160*49mm |
| Packing |
Gift box |
| Standard Quantity Per Carton |
20pcs |
| Standard Carton Size |
62.5*45*28.5cm |
| Standard Carton Gross Weight |
16.5kg |
|
 |

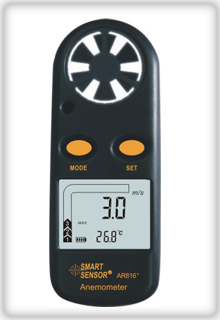

AR816+
| SPECIFICATIONS |
|
| Wind Speed Measuring Range |
0.3~30m/s |
| Accuracy of Temperature |
±5%±0.1dgt |
| Air Velocity Unit |
m/s,Ft/min,Knots,km/h,Mph |
| Average wind speed measuring |
√ |
| Max/Min wind speed measurin |
√ |
| Temperature Measuring Range |
0~45℃ |
| Accuracy of Temperature |
±2℃ |
| ℃/℉ Selection |
√ |
| Backlight Display |
√ |
| Low Battery Indication |
√ |
|
Analog Quantity Display
|
√ |
| Resolution |
0.1m/s |
| USB Transmission |
--- |
| Data Store |
--- |
| PACKING INFORMATION |
|
| Power |
CR2032 3.0V |
| Product Net Weight |
52g |
| Product Size |
105*40*15mm |
| Packing |
Blister |
| Standard Quantity Per Carton |
80pcs |
| Standard Carton Size |
38*38*44cm |
| Standard Carton Gross Weight |
9.5kg |
|
