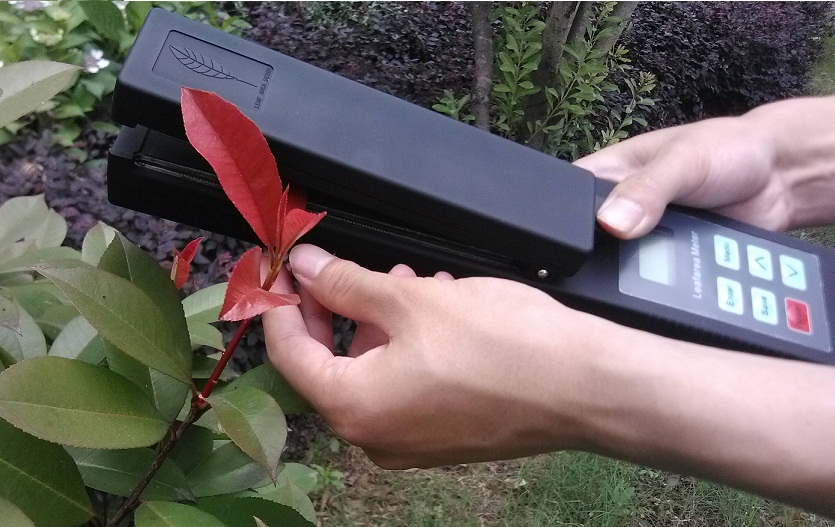

Leaf area
meter RC-70
|
Name
|
Portable
Living
Leaf
Area
Meter |
|
Model
|
RC-70
|
|
Action
|
Can
test
the
open
door
leaves
area
with
not
damage.easy
to
carries.
Can
test
many
kinds
of
data,
such
as
leaf
area,
average
area,
length
of
leaf,
width
of
leaf,
thickness
of
leaf,
perimeter
and
ratio
of
Length
to
width.
|
|
Technical
specification |
-Measuring
range:leaf
area,
average
area,
length
of
leaf,
width
of
leaf,
thickness
of
leaf,
perimeter
and
ratio
of
Length
to
width.
Test
unit:
Millimeter,
square
millimeter
-Precision:
+2%
-Length:
≤1000mm
-Width:
≤160mm
-Thickness:
≤8mm
-Stored
datum:200Groups
-Battery:6v |
|
 |

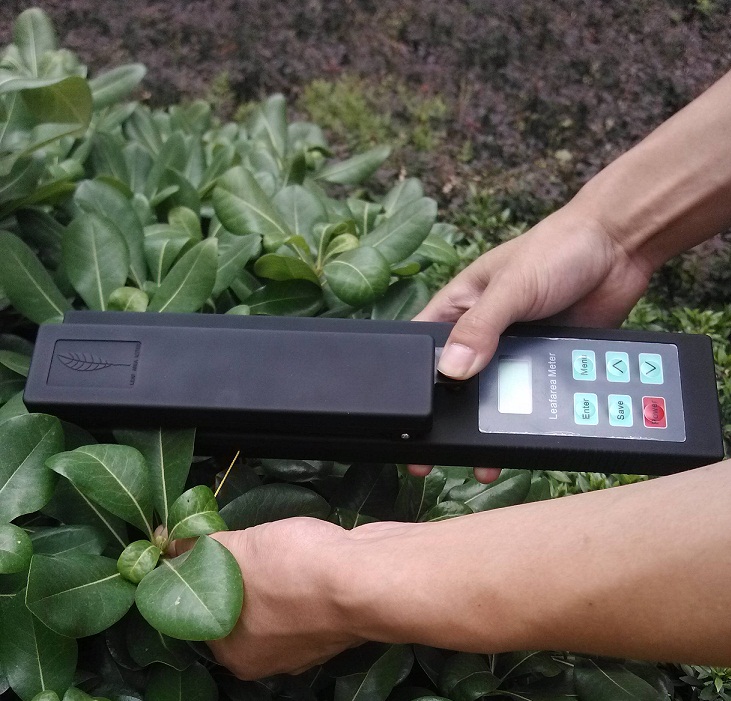

Leaf area meter RC-80
|
Name |
Portable Living Leaf Area Meter |
|
Model |
RC-80 |
|
Action |
Can test the open door leaves area with not damage.easy to carries. Can test many kinds of data, such as leaf area, average area, length of leaf, width of leaf, thickness of leaf, perimeter and ratio of Length to width.
|
|
Technical specification |
-Measuring range:leaf area, average area, length of leaf, width of leaf, thickness of leaf, perimeter and ratio of Length to width.
Test unit: Millimeter, square millimeter
-Precision: +2%
-Length: ≤1000mm
-Width: ≤160mm
-Thickness: ≤8mm
-Stored datum:200Groups
-Battery:6v |
|
More |
RC-80 add RS-232 link with computer by software, you can put the datum into computer.
|
|
 |
Leaf area meter RC-90
|
Name
|
Portable Living Leaf Area
Meter |
|
Model
|
RC-90 |
|
Action
|
Can test the open door
leaves area with not
damage.easy to carries. Can
test many kinds of data,
such as leaf area, average
area, length of leaf, width
of leaf, thickness of leaf,
perimeter and ratio of
Length to width.
|
|
Technical specification |
-Measuring range:leaf area,
average area, length of
leaf, width of leaf,
thickness of leaf, perimeter
and ratio of Length to
width.
Test unit: Millimeter,
square millimeter
-Precision: +2%
-Length: ≤1000mm
-Width: ≤160mm
-Thickness: ≤8mm
-Stored datum:200Groups
-Battery:6v |
RC-90
add
GPS，can
provide
you
latitude
and
longitude
data
of
every
measurement.
|
 |
Camera type of Leaf area meter
RC-80H
1.The intelligent camera measurement
system is composed of an image
acquisition device and an
independent development software,
using area measurement algorithmthe
of company accumulated over the
years，according to the feature
extraction of blade profile, the
physical transformation of the
image, the edge detection
technology,can quickly get the image
and the measured leaf area,
perimeter, wormhole number and other
parameters.Compared to the
traditional leaf area, the
measurement is more rapid and
convenient, the result is more
objective , data diversity and
greatly reduce the error caused by
human operation.
2.Main technical parameters
Parameter measurement: leaf area,
perimeter, maximum leaf length and
width, globose, shape coefficient,
number of wormhole, wormhole area
Applicable scope: all kinds of
common leaf containing complete or
wormhole
Measurement range: 1-600 square
centimeter
Blade length: 0-297mm
Maximum leaf width: 0-210mm
Wormhole measuring range: not less
than 0.5 square centimeters
Measurement accuracy: 2% (larger
than 30cm2), 3% (less than 30cm2)
Host storage: more than 2000 groups
Stability: change within one year <
+ 2%
Response time: 50ms
Application temperature: -80 C -30
C; relative humidity 0-100%
Host parameter:
Software system: Android4.2.2 or
above
Size: 7 inch IPS capacitive touch
screen
Memory: 32GB
Network support: WLAN (802.11
a/b/g/n) wireless network, Bluetooth
4
Interface: micro USB
Standard charging power supply:
DC5V1A
Battery capacity: 3000mAH
Size: 9.3mm 187x111x weight: 266 G
3.software introduction
1)、After
testing a leaf, click on the
real-time image can be returned to
the measurement interface, this time
can be re placed on the another leaf
or second measurements of the same
leaf.
2)、Artificial aid：Mainly used for
complex blade edge or complex color
errors of the instrument for
measuring the edge cases, using
artificial painted leaf edge, tell
margin of instrument, which can
makes the measurement results more
reliable. Usage: click on the
"manual", began to describe the
margin, after describing the good,
once again in the same position
Click to complete the auxiliary.
3)、Parameter setting：Mainly used for
correction of measurement accuracy.A
known area of the blade or the color
card into the measurement, get the
results of the parameters set, enter
its true area, click OK to exit.
4)、Save / open image:Press the
button to save the image, can save
the measured data and graphics , and
then press the image to open the
function, can call the data has been
saved.
5)、Save data upload:File path, click
on the "file management",
"pictures", "leaf area detection"
can see graphics which you saved,
the corresponding data will in
accordance with the time to sort
records in "result.csv" , you can
use plate installed Baidu cloud
software uploaded to the PC
side(Baidu accounts need to be
registered on their own). |
