Chinese Gauss meter  Tesla meter

Gauss meter also called Tesla meter, flux meter, can measure AC,DC Magnetic field ,Can measure the surface magnetic field of permanent magnet, DC motors, speakers, magnetic separator, permanent magnetic's separator magnetic field of work.  can be applied to detect residual magnetic materials, detection of the distribution of magnetic remaining after demagnetization , and controlling the plating materials with magnetic, detect motor magnetic ,flux leakage detection of electromagnetic field gauss value.

digital gauss meter HT208       digital Gauss meter HT20

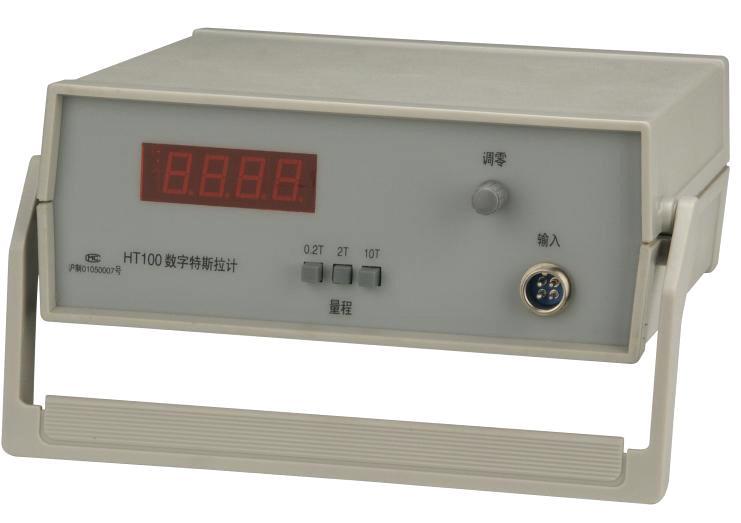

Gauss meter for strong magnetic field. item No. ht-100g



range: 0~200mT~2000mT~10T

error:  1%

resolution: 0.1m T 、1mT、10 mT

ambient Temperature: 5-40

humidity: 20% -80%

power: AC220V

 size: 160x88x36 mm

weight: 300g

display: 3 1/2 LCD

display unit: mT

Remarks: 1mT=10Gs




Digital Gauss meter Tesla meter HT208

Description:

Range:0~200mT~2000mT

Fundamental Error:±2%

Resolution:DC×1 :0.00~200.00mT         0.01mT

DC×10:0.0~2000.0mT         0.1mT

AC×1 :0.00~200.00mT        0.01mT

AC×10:0.0~2000.0mT         0.1mT

Measure description:DC/AC

Functional description:PEAK HOLD

Gs/mT  Remark switch

(DC)N/S  display

Speediness adjust zero

Ambient Temperature:5℃~40℃

Relative Humidity:20%~80%

Power Supply:four 1.5v batteries

Size:160mm×88mm×36mm

Weight:300g

Display Mode:4 1/2 LCD

Display unit:mT/Gs

Remark:1mT=10Gs ( gauss)


Digital Gauss tesla meter HT20

range: 0-200mT-2000mT

error:  1%

resolution: DCx1: 0-200.00mT, 0,1mT

DCx10: 0-2000.0mT    1mT

measure description: DC

ambient Temperature: 5-40

humidity: 20% -80%

power: A9V DRY BATTERY

 size: 160x88x36 mm

weight: 300g

display: 3 1/2 LCD

display unit: mT

Remarks: 1mT=10Gs



how to measure magnetic material? how to measure remaining magnetic?how to detect flux leakage? how to get magnetic value? how to get gauss value?
