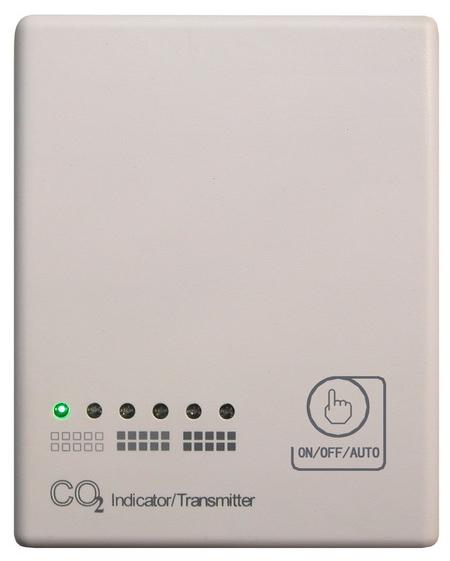

u       Real-time detecting CO2 level.

u       NDIR infrared CO2 module inside with four CO2 detection range selectable.

u       CO2 sensor has Self-Calibration Algorithm and 15

years lifetime

u       Wall-mounting

u       Six indicator lights indicate CO₂ levels clearly

u       An on/off output with the 3A relay, provide four setpoints selectable by the jumpers

u       A touch button to operate a fan

u       Design for control a ventilator in houses, offices, or other public areas

u       Modbus RS485 communication interface optional: 15KV antistatic protection, independent address setting

u       24VAC/VDC power supply, also connect to 230VAC or 110VAC with a power adaptor

u       CE-Approval


n         Specifications

CO₂ Carbon Dioxide Monitor and Controller

F2000IAQ-CO2-30XX/50XX

Multiple functions and high performance with low prices

Wall mounting type and duct type selectable

 LCD display detecting both CO₂ level and temperature, also relative humidity (optional)

 NDIR infrared CO₂ module inside with special ABC_Logic Self Calibration System. It makes the CO2 measurement more accurate and more reliable in use.

 15 years lifetime of CO₂ sensor

 Microprocessor control, quick response, high precision

 Providing up to three 0~10V analog output or up to three relay dry-contact outputs

 The analog output with two alternatives: linearized over full range output or PID control output

 Different control mode for delays can be selected by user’s application, for example for ventilation or for greenhouse or other applications.

  Locale adjustable range of CO₂: 0~20,000ppm or 0~50,000;

 adjustable range of temperature: 5~45℃；adjustable range of humidity：5～95%RH

 RS-485 communication interface optional, 15KV antistatic protection, independent base address setting

CO2 Controller for Greenhouses

F2000IAQ-CO2-3003D

         Especially designed for agriculture equipments such as greenhouses, food and vegetable storages. Real-time detecting CO₂ level, temperature and humidity with the local programmable control.

          Wall mounting, LCD display

          Carbon dioxide sensor, temperature sensor and humidity sensor are internal. The three values can be apart set.

          Non-Dispersive Infrared Detector (NDIR) CO₂ sensor, 15 years lifetime, CO₂ setting range is selectable: 0~2000ppm / 0~20000ppm / 0~50000ppm

          Special ABC Logic with patented Self Calibration Algorithm makes the CO₂ sensor used up to 15 years

          Temperature setting range: 5~45℃

   Humidity setting range: 5～95%RH

          Provid three relays outputs to control a CO₂  generator, _a temperature device and a humidity devise or a ventilator.

          Special photosensitive sensor detection can make the working mode of the CO₂ generator changeover automatically in day and night.

          Provide brightness adjustment range to make day/night limit setting by end users.

          RS-485 communication interface with 15KV antistatic protection makes the controller being connected with PC (option)

          Multiple functions, high performance, low price, make it praiseworthily.
