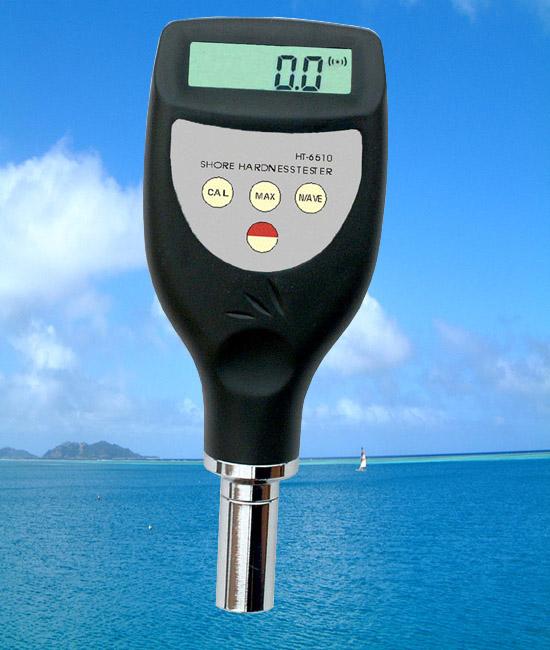

shore hardness tester

large photo

Specifications

Model

HT-6510

Model suffix

A

C

D

Product info

Digital durometer for Shore hardness testing Pocket size model with integrated probe

Test scale

Shore Hardness

Standards

DIN53505,ASTMD2240,ISO7619,JISK7215

Parameters displayed

Hardness result,Average value,Max.Value

Measurement range

0-100HA(HC,HD)

Measurement deviation

＜1%H

Auto switch off

With RS232C interface

Operating conditions

0℃to 40℃

Power supply

4*1.5VAAA(UM-4)battery

Battery indicator

Low battery indicator

Dimensions

162*65*28

Weight (Not including battery)

173g

160g

Standard delivery

Main unit

1

Carrying case

B04

Instruction manual

1

Optional Accessories

Cable &software for RS232C interface

Application: shore A is designed to measure the penetration hardness of rubber, elastomers and other rubber like substances such as neoprene, silicone, and vinyl. It can also be used for soft plastics, felt, leather and similar materials.

Shore D is designed for plastics, Formica, Epoxies and Plexiglass.

Application: shore C is designed for various foam and sponge.

　
