Infrared cameras

Infrared cameras DL700E/E+

DL700E/DL700E+ offers outstanding image quality and temperature measurement performance in an affordable, rugged and easy to use infrared camera. It works as a professional tool for engineer or thermographer adaptable to every situation.

Auto focus
Full screen CCD
Store up to 3000 pictures
300,000 pixels CCD picture display
ó>IR camera upgrading through FLASH card
40 seconds voice comments
Ergonomic, lightweight and portable

Auto focus  Convenient operation

MAIN FEATURES

Compact design and ease operation
The IR camera is designed user friendly with compact structure and light weight. The optional connected LCD and remote controller make it easy to observe the target and shoot from different position.

New high resolution IR detector (384x288 pixels) with accurate temperature measurement
Utilizing new generation uncooled FPA microbolometer IR detector with 384x288 pixels, DL700E+ supports high thermal sensitivity of 0.08℃ accurate temperature of ±2°С or ±2%, which efficiently reacts temperature difference.

Strong technical platform
DL700E/DL700E+ is designed with ultra powerful integrated circuits and DSP image processing system based on the advanced technology of Alter FPGA system (SOPC), ensuing its stable performance and functions.

Powerful temperature measurement modes
Up to 10 real-time movable spots and 5 real-time movable areas measurement in full screen allow users to track maximum and minimum temperature in the area automatically and make temperature analysis in any direction in the image with line profile, isotherm and histogram as well as temperature difference.

Thermal/ visual images and Laser pointer
DL700E/DL700E+ records visual images, with store, playback available as well as thermal image convertible, making your job a lot easier. And the integrated laser pointer helps you safely and quickly to locate the physical target.

Large-capacity image storage with JPEG format
DL700E/DL700E+ saves images in JPEGs format. These images, together with measurements, plus voice and/or text annotations, are stored either on a removable compact FLASH PC card (1G) or in the camera’s FLASH memory (64MB). Images can easily be downloaded by USB from the camera using its report software which is provided as standard.

Strong backup analysis software
This easy-to-use report software contributes to fast, accurate evaluation of infrared inspection results, allowing you to create all your reports in Microsoft Word?. And an extra toolbar on your screen gives you instant access to specific functions for detailed analysis

Specification

 Infrared cameras DL700C/C+

DL700C/DL700C+ is a rugged, economical and practical IR camera, which allows to capture infrared and visual images in the field. Combing with the intelligent  Report software, the camera is perfect solution for all infrared inspections especially in field of Electrical industry and Metallurgy equipment detecting.

Manual focus
Full screen CCD
Store up to 2000 pictures
300,000 pixels CCD picture display
IR camera upgrading through FLASH card
40 seconds voice comments
Ergonomic, lightweight and portable

MAIN FEATURES

Compact design and ease operation
The IR camera is designed user friendly with compact structure and light weight. The optional connected LCD and remote controller make it easy to observe the target and shoot from different position.

New high resolution IR detector (384x288 pixels) with accurate temperature measurement
Utilizing new generation uncooled FPA microbolometer IR detector with 384x288 pixels, DL700C+ supports high thermal sensitivity of 0.08℃ accurate temperature of ±2°С or ±2%, which efficiently reacts temperature difference.

Strong technical platform
DL700C/DL700C+ is designed with ultra powerful integrated circuits and DSP image processing system based on the advanced technology of Alter FPGA system (SOPC), ensuing its stable performance and functions.

Powerful temperature measurement modes
Up to 10 real-time movable spots and 5 real-time movable areas measurement in full screen allow users to track maximum and minimum temperature in the area automatically and make temperature analysis in any direction in the image with line profile, isotherm and histogram as well as temperature difference.

Thermal/ visual images and Laser pointer
DL700C/DL700C+ records visual images, with store, playback available as well as thermal image convertible, making your job a lot easier. And the integrated laser pointer helps you safely and quickly to locate the physical target.

Large-capacity image storage with JPEG format
DL700C/DL700C+ saves images in JPEGs format. These images, together with measurements, plus voice and/or text annotations, are stored either on a removable compact FLASH PC card (1G) or in the camera's FLASH memory (64MB). Images can easily be downloaded by USB from the camera using its report software which is provided as standard.

Strong backup analysis software
This easy-to-use report software contributes to fast, accurate evaluation of infrared inspection results, allowing you to create all your reports in Microsoft Word?. And an extra toolbar on your screen gives you instant access to specific functions for detailed analysis

Specification



infrared cameras: T6-S/P

T6 ultra portable thermal infrared camera, built-in world’s most powerful infrared detector with 384x288 pixel array, offers unmatched temperature measurement accuracy and the best image quality. The particular 90 degree rotated 2.8” LCD enhance the image displaying functions. It is the ideal option to maintenance detection and other control applications.

Ergonomic, light weight and portable

Developing from high resolution 384x288 pixels detector

2.8" LCD with brightness and gain adjustment

Precise temperature measurement with thermal sensitivity of 0.1℃

40 seconds voice annotation1G flash memory store up to 3000 thermal images along with the voice annotation

Rotatable LCD screen
The LCD is designed to be 90 degree rotatable, which facilitates different observing angle for whatever the live situation you faced.
The LCD is able to be adjusted in its brightness and gain for better image display.

Voice annotstion together with the image
40seconds of voice annotation per thermal image help the operator to refresh the live operation situation easily.

Image storage
The camera saves image in fully radiometric JPEG format. Built-in 1G FLASH enables you store radiometric JPEG image up to 3000 pictures, each picture combining temperature data and voice annotation. The images could be easily to be downloaded to PC via USB cable for
report analysis.

Compact design and ease operation
The IR camera is user friendly designed with compact structure and light weight. The optional connected LCD and remote controller make it easy to observe and aim to different position.

New high resolution IR detector (384x288 pixels) with accurate temperature measurement
Utilizing new generation uncooled FPA microbolometer 384x288 pixels IR detector, T6 series support high thermal sensitivity of 0.08℃, which efficiently reacts temperature Difference.

Strong backup analysis software
This easy-to-use report software contributes to fast, accurate evaluation of infrared inspection results, allowing you to create all your reports in Microsoft Word . And an extra toolbar on your screen gives you instant access to specific functions for detailed analysis.

 TECHNICAL SPECIFICATIONS

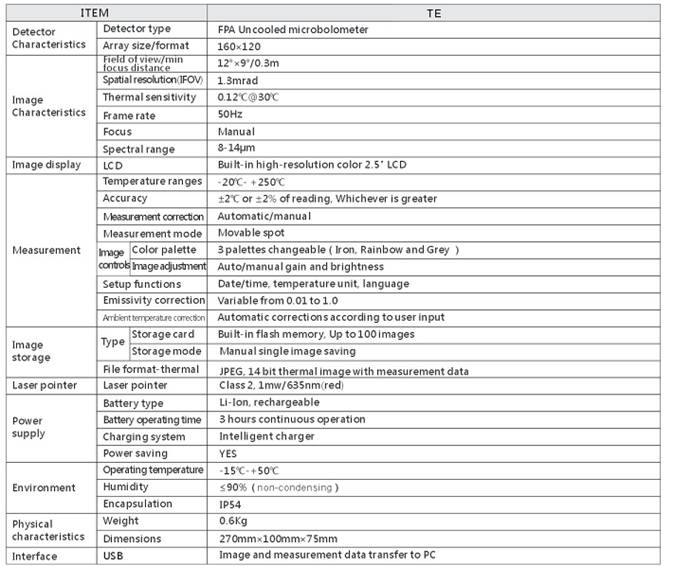

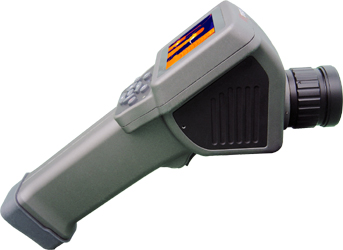

Infrared cameras:  MODEL: TE

The TE IR camera is an extremely affordable hot spot finder thermograph camera. With unbelievable precise thermal image and high price & performance ratio, TE meets a wide variety of application requirement including electrical industry and field of metallurgy.

Ergonomic design and easy to operation
Ergonomic control buttons support easy operation on the system menu to inspect the target conveniently. Built-in laser pointer guides operator to see LCD with real target in the field.

Efficient precision temperature measurement
Thermal sensitivity of 0.12℃ is sufficient to allow operator detecting hot spot in the observation region. Real-time movable spot temperature measurement makes the inspection more efficient and flexible.

Long life battery
 hours continuous operation and intelligent power save system confirm the long time operation with multi temperature measurement functions.

Built-in flash memory
Built in flash memory store up to 100 image of JPEG picture format, it enables operators to generate analyzing report based on the thermal images.

 Infrared cameras: T2-E/S/P

◇ Quick operation functions
◇ Real-time 50 Hz image display and analysis
◇ Three types of temperature units available (℃, K ,℉)
◇ Built-in flash memory to store up to 1000 images in JPEG format
◇ Quick access button settable for your operation
◇ Built-in laser pointer for an easy target locating

Ultra compact structure and easy operation
The compact and ultra-light design allows the user to handhold the camera easily to aim the target. Ergonomic control buttons enable the realization of all functions.

Accurate temperature measurement and high image quality
T2 series cameras offers you unmatched temperature measurement accuracy with thermal sensitivity of 0.1°C. And clear, noise-free, excellent quality images displaying on the camera’s 2.5"color LCD provides you an instance access to defects.

Multi temperature measurement mode
T2 series cameras integrates varies measurement mode: from basic one movable spot mode to advanced modes such as multi-movable spots and areas with average/max/min temperature tracing, line profile, isotherms and temperature difference, all of which enable operator to get clear target temperature situation all-sided and quickly. The function of visible and audible alarms allows camera assist operators observing selected area automatically.

Built-in flash memory
Built in flash memory store up to 1000(100 for T2-E) image of JPEG picture format along with 40 seconds voice annotation per image, it is convenient for operators to refresh the memory of shooting situation.

Intelligent power control system
Automatic shutdown and sleep mode are designed for saving the battery power, which could stand up to 3 hours continuous operation.

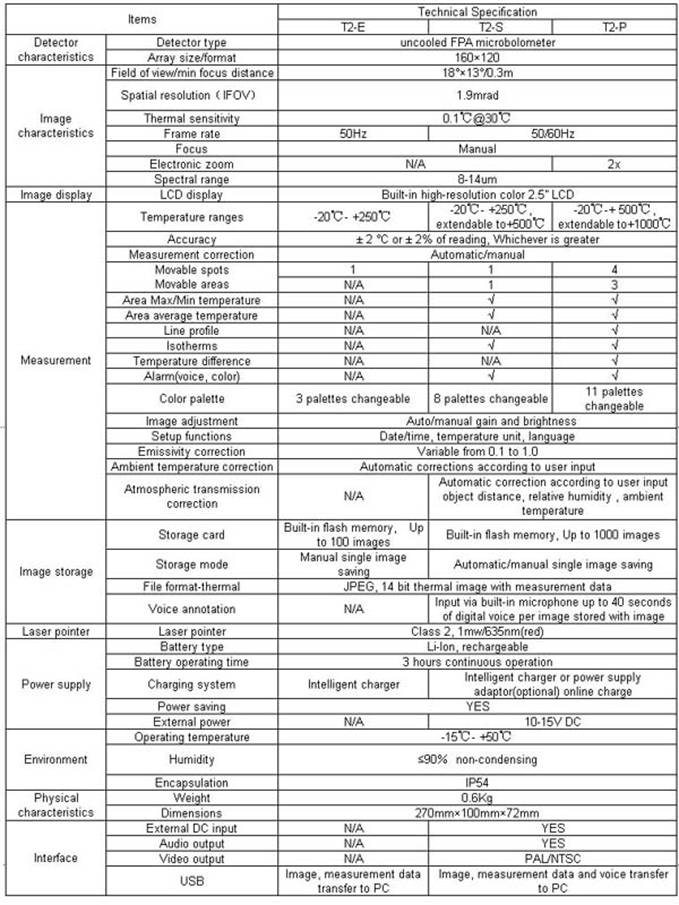

TECHNICAL SPECIFICATIONS

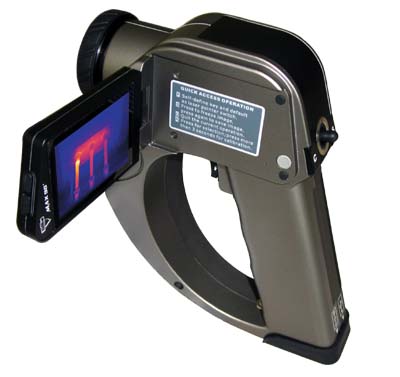

 Infrared cameras T2i-E/S/P

Powerful multi-purpose camera with all professional functions, Ergonomically designed with the side open 360 degree rolling LCD.

Outstanding image quality
Ergonomic lightweight and portable
Laser pointer
Ergonomically designed with the side open 360 degree rolling LCD
Universal JPEG image storage
Intelligent multi-function shortcut keys

MAIN FEATURES

Ergonomic figure designing
The unique figure structure with "D"is ergonomic balance and comfort. Hold the T2i in your hand, rolling the LCD in any angle, the
operator always has a good position to target the object in any direction.

Precise temperature measurement and extraordinary image quality
The T2i indicates the accurate temperature measurement with the thermal sensitivity of 0.10℃. 2.8＂high resolution colored LCD display
excellent quality, extremely clear noise-free images.

Easy operation
The self-defined multi-function shortcut key helps the users operate the camera more flexible. And user-friendly joystick provides simple
menu option and comfortable button on the camera offers the easy one-handed operation.

Flexible JPEG image storage
The camera offers built-in flash and optional SD card flexible to store high quantity of JPEG images. The storage capability is up to 10000
with 1G SD card.

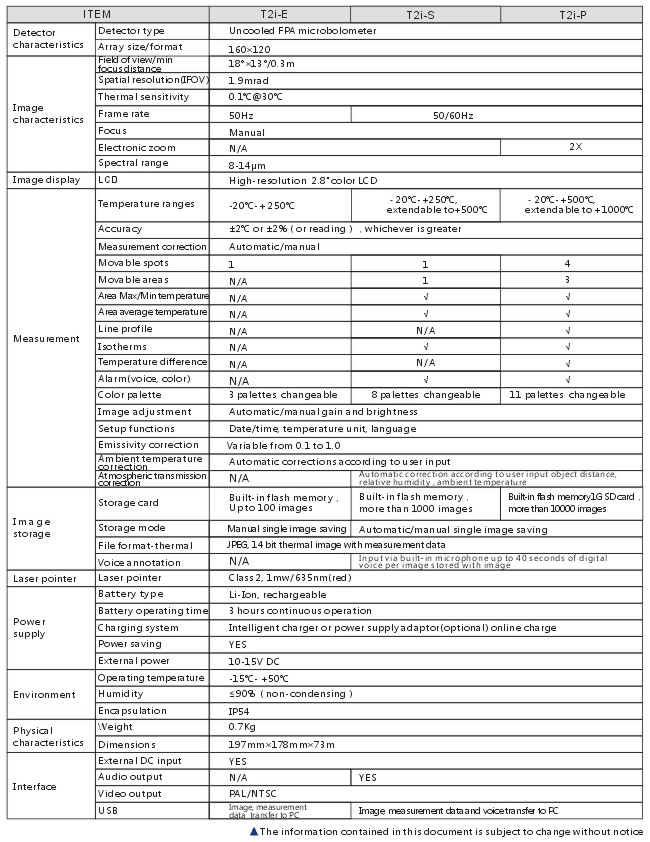

Specification

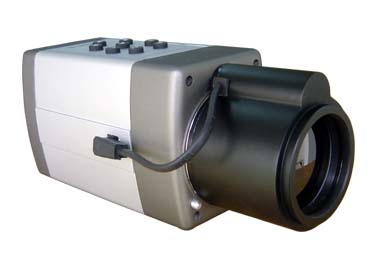

Online infrared cameras:  DM60-S/F

DM60 thermal imaging camera is ideal for condition monitoring with accurate temperature available. This system is perfect for process control and analysis, as well as security and surveillance applications which are difficult or impossible to capture the record by using conventional means such as normal infrared or visible light cameras. It also meets and exceeds needs in many applications including: research & development, electronic R&D, industrial process control, public safety, etc.

Ultra big integrated circuits and DSP image processing system
High-quality thermal images, outstanding thermal sensitivity
Auto/Manual focus, single key touch off infrared image Auto-focus
Support network transmission with extra long distance surveillance and remote control
MPEG-4 measurement data output
IP67 high protection
Low power consume and intelligent power supply system
Multi-functions, supply SDK for future developing

MAIN FEATURES

Accurate non-contact temperature measurement and excellent image quality
The system produces crisp high- resolution images 384×288 at a frame rate of 50/60 Hz. Customized lens is available upon your request for the different distance surveillance with sensitivity always kept at 0.1 °C.

Extensive connectivity options: FireWire or Ethernet
To backup surveil, the designed system not only provides firewire with high speed real-time video transmission but also supports system controlling via Ethernet to process long distance surveillance. Real-time digital thermal image, temperature and camera control signals could be transferred to PC via Ethernet connect with RJ-45 interface. The images are compressed with MPEG-4 format and transmitted to the desired PC. All menu functions of cameras are available to realize in the backup controlling software.

Multiple Input / output function
DM60 can be either to be integrated in your control systems or to be set up as a stand-alone system. The operator can set 4 moveable spots, 3 moveable areas (maximum, minimum and average temperatures). Other functions such as line profile, isotherms, and temperature difference are also available. If, for example, the temperature within one of these areas rises above or falls below a preset value, both visual and audio alarm will go off.

Versatile image storage
Original image collection realizes your single frame continuous or interval collection with time adjustable from PC (up to 200 frames). Meanwhile, MPEG-4 image is available for single image storage, real-time continuous images recording. Connect with other recording device, such as digital video recorder, the data can be saved and recalled for further evaluation.

Easy operation: plug and play
Simply connect the system to a PC or a monitor and produce high-quality real-time radiometric images. DM60 can be fully controlled either from the PC or directly by the camera buttons.
