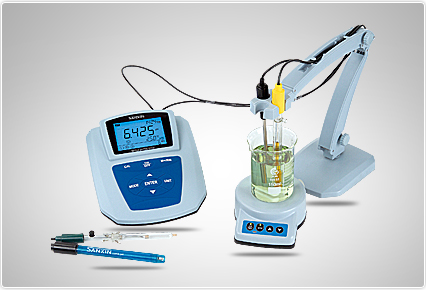

MP523 pH/ISE Meter
The fourth generation electrochemical meter, one of MP500 Series. It is the high precision pH + ISE Double-Parameter measurement meter which is suitable for precisIon measurement research and quality control
Equips two pH electrodes: one is plastic 3-in-1 pH electrode and the other one is 2503 glass pH electrode, which is suitable for high precision measurement.
There are 10 kinds of common ions can be selected in the ion concentration measuring mode, user also can self-define other ions.
Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
Equips Intelligent stirrer, flexible electrode holder and brief operation instruction, more convenient for using
Instrument Rating: pH：0.001；ISE: 0.01More
pH | Measuring range Resolution Accuracy Input current Input impendance Stability Temp. compensation range | （-1.999 ~ 19.999）pH 0.1/0.01/0.001 pH Meter:±0.002 pH, connect meter with electrode:±0.01pH ≤1×10-12 A ≥3×1012 Ω ±0.002 pH/3h (0 to 100) ℃（automatic or manual） |
mV | Measuring range(mV/ORP/EH) Resolution Accuracy | -1999.9mV ~ 0 ~ 1999.9mV 0.1mV ±0.03% FS |
Ion Concentration | Measuring range Display unit Accuracy Temp. compensation range | 0.00 ~ 14.00 pX pX、mol/L、mg/L、ppm Meter:±0.5 % reading(monovalent), ±1.0 % reading (bivalent) 0 to 60 ℃（automatic or manual） |
Temperature | Measuring range Resolution Accuracy | -10℃~ 110℃ 0.1℃ 5~ 60℃range：±0.4℃ other range：±0.8℃ |
Other Technical Parameters: | Data storage Storage content Power Communication connector Size and weight Quality and safety certification | 300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC |
Working Condition | Environment temperature Environmental humidity IP rating | 5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade） ≤75% IP54 Dustproof and waterproof |

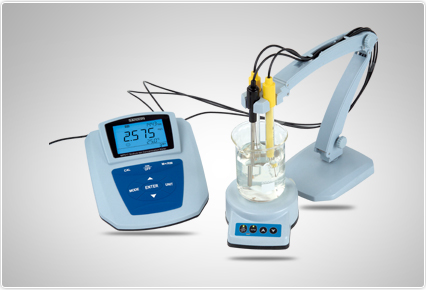

MP517 Sodion Ion Meter
The fourth generation electrochemical meter, one of MP500 Series. It is suitable for measuring low Sodium ions concentration.
Sodium electrode range : 1～7 pNa (10-1～10-7 mol/L)
Equips sodion electrode, reference electrode and temperature electrode.
Instrument Rating: 0.01More
● Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
● There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
● Sodium electrode range : 1～7 pNa (10-1～10-7 mol/L)
● Equips sodion electrode, reference electrode and temperature electrode.
● Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
●Meter has the only product serial number.
● Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.

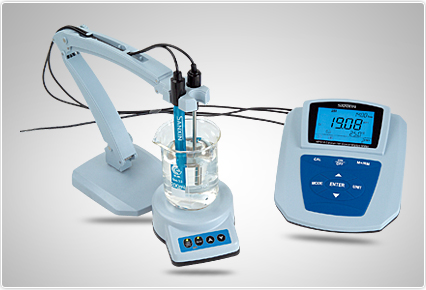

MP518 Calcium Ion Meter
The fourth generation electrochemical meter, one of MP500 Series. It is suitable for measuring Calcium ion concentration.
Calcium electrode range : 1～5 pCa (10-1～10-5 mol/L)
Equips Calcium ion combination electrode, and temperature electrode.
Instrument Rating: 0.01More
● Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
●There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
●Calcium electrode range : 1～5 pCa (10-1～10-5 mol/L)
●Equips Calcium ion combination electrode, and temperature electrode.
● Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
● Meter has the only product serial number.
● Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.

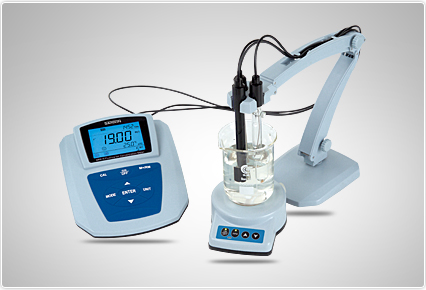

MP519 Fluorine Ion Meter
The fourth generation electrochemical meter, one of MP500 Series. It is suitable for measuring fluorion concentration.
Fluorion electrode range : 1～6 pF (10-1～10-6 mol/L)
Equips fluorion electrode, reference electrode and temperature electrode.
Instrument Rating: 0.01More
●Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
●There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
●Fluorion electrode range : 1～6 pF (10-1～10-6 mol/L)
● Equips fluorion electrode, reference electrode and temperature electrode.
●Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
● Meter has the only product serial number.
● Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.
YD200 Lab. Water Hardness Meter
Meter for measurement of water hardness by electrode measurement method, easy to use and accurate result.
Avoid the shortcomings of traditional measurement method: complicated EDTA titration, colorimeter measurement method can only be applied in water of high hardness (the lower limit of measurement ＞50mg/L).
Measurement scope 0~10mmol/L(0~1000mg/L(CaCO3)).
Ability to switch among
●Benchtop meter for measurement of water hardness (the total concentration of calcium ion and magnesium ion).
●Electrode adopts model 601-F water hardness combination electrode with patent structure. It consists of measurement electrode, reference electrode and temperature probe. Replaceable measuring head, steady potential, fast response, easy to use.
●Meter adopts intelligent chip design, automatic calibration, automatic temperature compensation, time display, data storage RS232 output, etc.
● Ability to switch among eight units: mmol/L, mg/L (CaCO3), mg/L (CaO), mmol/L (Boiler) and mg/L (Ca). Three options of three units: ºfH（France）、ºdH （Germany）and ºeH（UK） from WH-Link communication software.
●Equipped with B1、B2 and B3 calibration solution.
●Equipped with WH-Link communication software, connect testing data of meter to computer.
Water Hardness | Temp. compensation Calibration Solution Calibration Mode | （0 ~ 10）mmol/L； （0 ~ 401）mg/L(Ca)； （0 ~ 1000）mg/L(CaCO3)； （0 ~ 100）ºfH(France Degree)； （0 ~ 561）mg/L(CaO)； （0 ~ 56）ºdH(German Degree)； （0 ~ 20）mmol/L(Boiler)； （0 ~ 70）ºeH (England Degree)。 0.01 and 0.1 water hardness units ±5% FS （5 ~ 50）℃（（automatic）） B1 Calibration Solution — 2.00×10-2 mmol/L B2 Calibration Solution — 2.00×10-1 mmol/L B3 Calibration Solution — 2.00 mmol/L （B3Calibration Solution also can be used for the soaking solution of electrode） (a)B1/B2 Calibration—using B1 and B2 Calibration Solution，suitable for < 2.00×10-2 mmol/L low concentration water quality，for example, boiler water. (b)Calibration—using B2 and B3 Calibration Solution，suitable forgeneral water quality. |
Temperature | Measuring range Resolution Accuracy | 0 ~ 60℃ 0.1℃ ±0.5℃ |
Other Technical Parameter | Data storage Content Storage Communication Connector Power Dimension and weight Quality and safe certificate | 128 groups serial number of measuring value, measuring value, units, temperature, ATC or MTC, date, time and calibration way. RS232 DC9V (160×190×70)mm/750g IISO9001:2000 and CE |
working conditions | Ambient temperature ambient humidity | (5~35)℃ ≤85%RH |
YD300 Portable Water Hardness Meter
● Meter for measurement of water hardness by electrode measurement method, easy to use and accurate result.
● Avoid the shortcomings of traditional measurement method: complicated EDTA titration, colorimeter measurement method can only be applied in water of high hardness (the lower limit of measurement ＞50mg/L).
● Measurement scope 0~10mmol/L(0~1000mg/L(CaCO3)).
● Ability to switch among five units of water hardness.More
●Portable meter for measurement of water hardness (the total concentration of calcium ion and magnesium ion).
● Electrode adopts model 601-F water hardness combination electrode with patent structure. It consists of measurement electrode, reference electrode and temperature probe. Replaceable measuring head, steady potential, fast response, easy to use.
●Meter adopts intelligent chip design, automatic calibration, automatic temperature compensation, time display, data storage, low voltage display, etc.
● Ability to switch among eight units: mmol/L, mg/L (CaCO3), mg/L (CaO), mmol/L (Boiler), mg/L (Ca). Three options of three units : ºfH（France）、ºdH （Germany）and ºeH（UK）from WH-Link communication software.
● Equipped with B1、B2 and B3 calibration solution.
● IP57 waterproof rating, equipped with portable case, calibration solution and other accessories.
Water Hardness | Temp. compensation Calibration Solution Calibration Mode | （0 ~ 10）mmol/L； （0 ~ 401）mg/L(Ca)； （0 ~ 1000）mg/L(CaCO3)； （0 ~ 100）ºfH(France Degree)； （0 ~ 561）mg/L(CaO)； （0 ~ 56）ºdH(German Degree)； （0 ~ 20）mmol/L(Boiler)； （0 ~ 70）ºeH (England Degree)。 0.01 and 0.1 water hardness units ±5% FS （5 ~ 50）℃（（automatic）） B1 Calibration Solution — 2.00×10-2 mmol/L B2 Calibration Solution — 2.00×10-1 mmol/L B3 Calibration Solution — 2.00 mmol/L （B3Calibration Solution also can be used for the soaking solution of electrode） (a)B1/B2 Calibration—using B1 and B2 Calibration Solution，suitable for < 2.00×10-2 mmol/L low concentration water quality，for example, boiler water. (b)Calibration—using B2 and B3 Calibration Solution，suitable forgeneral water quality. |
Temperature | Measuring range Resolution Accuracy | 0 ~ 60℃ 0.1℃ ±0.5℃ |
Other Technical Parameter | Data storage Content Storage Power Dimension and weight Quality & safecertificate | 99 groups serial number of measuring value, measuring value, units, temperature, ATC or MTC, date, time and calibration way. Two AA cells（1.5V×2） Meter：(65×120×31)mm/180g； Carry Case： (255×210×50)mm/790g IISO9001:2000 and CE |
working conditions | Ambient temperature ambient humidity | (5~35)℃ ≤85%RH |
