Brief Introduction | |
The RC-058 Window Tint Meter is mainly used to test the transmittance of automobile glass and transparent or semi-transparent objects. It is small in size and portable, so it is especially adaptable to field measuring. | |
Technology parameter | |
Applications | Automobile making and test, field measurement of glass products and aerospace industry; Measurement of the transmittance of glasses, sunglasses and anti-suntan protective films; Measurement of the transmittance or haze of plastic products; Measurement of the transmittance of other transparent or semi-transparent material |
Measure range | 0.0-100% |
Measuring quantity | % optical transmittance |
Maximum matrix thickness | 10mm |
Measuring accuracy | ≤2% |
Environment temperature | 5℃~40℃ |
Accuracy range | 5%~85%visible light transmittance |
Optical detector | complying with V(lambda) human eye sensitivity |
Window Tint Meter RC-068 Brief Introduction | |
The RC-068 Window Tint Meter is mainly used to test the transmittance of automobile glass and transparent or semi-transparent objects. It is small in size and portable, so it is especially adaptable to field measuring. | |
Technology parameter | |
Applications | Automobile making and test, field measurement of glass products and aerospace industry; Measurement of the transmittance of glasses, sunglasses and anti-suntan protective films; Measurement of the transmittance or haze of plastic products; Measurement of the transmittance of other transparent or semi-transparent material |
Measure range | 0.0-100% |
Measuring quantity | % optical transmittance |
Maximum matrix thickness | 10mm |
Measuring accuracy | ≤2% |
Environment temperature | 5℃~40℃ |
Accuracy range | 5%~85%visible light transmittance |
Optical detector | complying with V (lambda) human eye sensitivity |
WINDOW
TINT METER RCWM-01
Applications：
Applicable to measure the transmittance or haze of all kinds of transparent,
translucent samples with parallel plane (such as automobile manufacturing,
aerospace, glass products, plastic sheet, sheet, etc). Also can be used to
determine the turbidity or clarity of liquid sample (water, drinks and so
on).
* This Window Tint Meter is a hand held device that measures the amount of
light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS
k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* One key calibration, easy to use.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Continuous measuring mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
| Display | 10mm LCD |
| Measurement Range | 0 to 100% Light Transmission |
| Resolution | 0.1 |
| Accuracy | ± 1 % |
| Sample Thickness | Less Than 10mm / 0.4inch |
| Light Source | LED |
| Measuring Mode | Continuous |
| Operating conditions | Temperature: 0 ~ 50 ℃ Humidity: < 90 % |
| Power Supply | 4 x 1.5 V AAA Size (UM-4) Battery |
| Dimensions | Unit: 126 x 65 x 27 mm (5.0 x 2.6 x 1.1 inch) |
| Sensor: 125 x 38 x 38 mm | |
| Weight | 100 g （Not Including Batteries） |
WINDOW
TINT METER RCWM-02
Applications：
Applicable to measure the transmittance or haze of all kinds of transparent,
translucent samples with parallel plane (such as automobile manufacturing,
aerospace, glass products, plastic sheet, sheet, etc). Also can be used to
determine the turbidity or clarity of liquid sample (water, drinks and so
on).
* This Window Tint Meter is a hand held device that measures the amount of
light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS
k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* One key calibration, easy to use.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Continuous measuring mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
| Display | 10mm LCD |
| Measurement Range | 0 to 100% Light Transmission |
| Resolution | 0.1 |
| Accuracy | ± 1 % |
| Sample Thickness | Less Than 10mm / 0.4inch |
| Light Source | LED |
| Measuring Mode | Continuous |
| Operating conditions | Temperature: 0 ~ 50 ℃ Humidity: < 90 % |
| Power Supply | 4 x 1.5 V AAA Size (UM-4) Battery |
| Dimensions | 126 x 65 x 27 mm (5.0 x 2.6 x 1.1 inch) |
| Weight | 100 g （Not Including Batteries） |

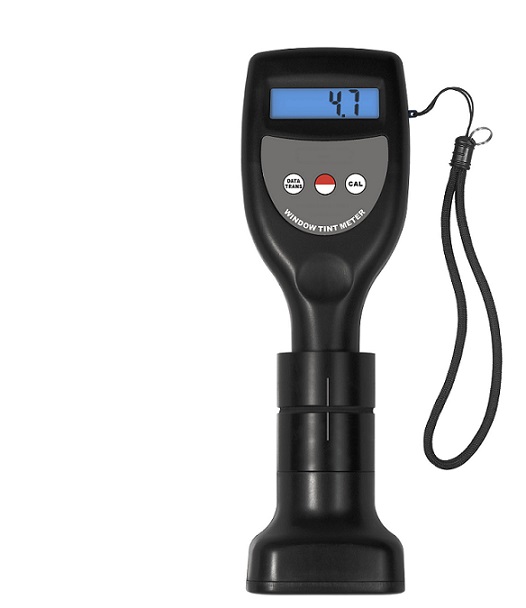

WINDOW TINT METER RCWM-03
* This Window Tint Meter is a hand held device that measures the amount
of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS
k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Can measure the transmittance of ultraviolet light, visible light, and
infrared light.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
|
Display
|
LCD
|
|
|
Range
|
0~100%
|
|
|
Resolution
|
0.1
|
|
|
Accuracy
|
±2%
|
|
|
Sample Thickness
|
<<18 mm/0.7 inch
|
|
|
Light Source
|
LED
|
|
|
Measuring Mode
|
Single /
Continuous
|
|
|
Operating
Conditions
|
Temperature:0~50ºC Humidity:,90%
|
|
|
Power Supply
|
Main Unit
|
4x1.5V
AAA(UM-4)Battery
|
|
Light Emitter
|
2x1.5V
AAA(UM-4)Battery
|
|
|
Size
|
Main Unit
|
141x65x38mm
|
|
Light Emitter
|
70x62x52mm
|
|
|
Weight
|
290g (Including
Batteries)
|
|
|
Standard
Accessories
|
Main Unit
|
|
|
Light Emitter
|
||
|
Standard Block
|
||
|
Carrying Case
|
||
|
Operation Manual
|
||
|
Optional
Accessories
|
RS-232C Data
Cable with Software
|
|
|
Bluetooth Data
Adapter with Software
|
||
WINDOW TINT METER RCWM-04
* This Window Tint Meter is a hand held device that measures the amount
of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS
k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
|
Display
|
LCD
|
|
|
Range
|
0~100%
|
|
|
Resolution
|
0.1
|
|
|
Accuracy
|
±2%
|
|
|
Sample Thickness
|
≤18mm/0.7inch
|
|
|
Measurement mode
|
Visible light
transmittance measurement
|
|
|
Ultraviolet
light transmittance measurement
|
||
|
Infrared light
transmittance measurement
|
||
|
Light
transmittance measurement cycle
|
||
|
Ultraviolet
Light
|
Wavelength 380nm
|
|
|
Visible Light
|
Wavelength
380-760nm
|
|
|
Infrared Light
|
Central
Wavelength 950nm
|
|
|
Operating
Conditions
|
Temperature:
0~50℃ Humidity: < 90%
|
|
|
Power Supply
|
4x1.5V AAA
(UM-4) Battery
|
|
|
Size
|
126x65x27mm
|
|
|
Weight
|
290g (Including
Batteries)
|
|
|
Standard
Accessories
|
Main Unit
|
|
|
Carrying Case
(B04)
|
||
|
Operation Manual
|
||
|
Optional
Accessories
|
USB Data Cable
with Software
|
|
|
Bluetooth Data
Adapter with Software
|
||
