Coating thickness gauge| film thickness gauge| coating layer thickness meter| Ferrous Coating thickness gauge| Non-ferrous thickness gauge| Chinese ultrasonic thickness gauge

Coating thickness meter       Model: CM8821

Operating principle: magnetic induction (F)

Measuring range:0-1000um

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AA (UM-3) battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 160x68x32mm

weight: 250g(not including battery)

Optional accessories: other range 0-200um to 15000um

Coating thickness meter Model: CM8822

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-1000um

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AA(UM-3)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 160x68x32mm

weight:  250g(not including battery)

Coating thickness meter Model: CM8823

Operating principle: eddy current (NF)

Measuring range:0-1000um

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AA (UM-3)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 160x68x32mm

weight: 250g(not including battery)

Optional accessories: other range 0-200um to 5000um

Coating thickness meter Model: CM8825FN    In built probe(s)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-1250um/0-50mil

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um

Coating thickness meter Model: CM8826FN    Recommend item

With separate probe(s)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-1250um/0-50mil

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um

 Coating thickness meter  specially for automobile Model: CM8828FN

In built probe(s)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-1250um/0-50mil

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)

Optional accessories: other range 0-200um to 15000um

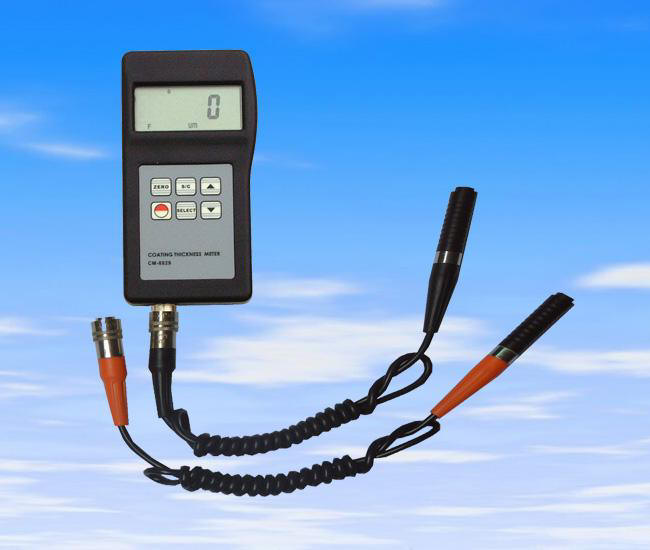

Coating thickness meter Model: CM8829S

With separate probe(s)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-1250um/0-50mil

Resolution: 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area:6mm

Min. sample thickness:0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)

Optional accessories: other range 0-200um to 15000um

coating thickness gauge (new!) CM8855

Model:CM8855

1.FEATURES
 It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM
and BS. It can be used both in the laboratory and in harsh field conditions.
 The F probes measure the thickness of non-magnetic materials (e.g. paint,
plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic
materials (e.g. iron, nickel etc.) . often used to measure the thickness of
galvanizing layer, lacquer layer,porcelain enamel layer, phosphide
layer, copper tile, aluminum tile, some alloy tile, paper etc.
 The N probes measure the thickness of non - magnetic coatings on non-magnetic metals .It is used on anodizing, varnish, paint, enamel,plastic coatings, powder, etc. applied
to aluminum, brass, non-magnetic stainless steel, etc.
 Automatic substrate recognition.
 Manual or automatic shut down.
 Two measurement mode: Single and Continuous
 Wide measuring range and high resolution.
 Metric/Imperial conversion.
 Digital backlit display gives exact reading with no guessing or errors.
 Can communicate with PC computer for statistics and printing by the optional cable.
 Can store 99 groups of measurements.
 Statistics is available.
2.SPECIFICATIONS
Display: 4 digits LCD, backlit
Range: 0~1250 μm/0~50mil (other ranges can be specified )
Min.radius workpiece: F: Convex 1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm
Min. measuring area: 6mm
Min.Sample thickness : 0.3mm
Resolution: 0.1 μm (0~99.9μm);
1 μm (over 100μm)
Accuracy: ±1~3%n or 2.5 μm or 0.1mil
(Whichever is the greater)
Bttery Indicator: Low batter indicator.
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temp. 0~50℃ .
Humidity <95% .
Size: 126x65x35 mm; 5.0x2.6x1.6 inch
Weight: about 81g(not including batteries)
Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories: RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface

Coating thickness gauge Model:CM-8856

1.FEATURES
* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint,plastic, porcelain enamel, copper, zinc,
aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of
galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some
alloy tile, paper etc.
The N probes measure the thickness of non - magnetic coatings on non-magnetic metals .It is used on anodizing, varnish, paint, enamel,plastic coatings, powder, etc. applied
to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and
Continuous
* Wide measuring range and high
resolution.
* Metric/Imperial conversion.
* Digital backlit display gives exact
reading with no guessing or errors.
* Can communicate with PC computer
for statistics and printing by the
optional cable.
* Can store 99 groups of measurements.
* Statistics is available.
2.SPECIFICATIONS
Display: 4 digits LCD, backlit
Range: 0~1250 μm/0~50mil
(other ranges can be specified )
Min.radius workpiece: F: Convex 1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm
Min. measuring area: 6mm
Min.Sample thickness : 0.3mm
Resolution: 0.1 μm (0~99.9μm);
1 μm (over 100μm)
Accuracy: ±1~3%n or 2.5 μm or 0.1mil
(Whichever is the greater)
Bttery Indicator: Low batter indicator.
PC interface: with RS-232C interface
Power supply: 2x1.5 AAA(UM-4) battery
Operating condition: Temp. 0~50℃ .
Humidity <95% .
Size: 126x65x35 mm; 5.0x2.6x1.6 inch
Weight: about 81g(not including batteries)
Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories: RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
