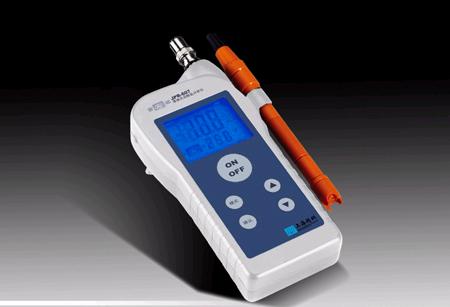

Portable Dissolved
Oxygen Meter JPBJ-607 D. O. Analyzer
Specification
Range: 0.00~19.99mg/L 0.0~255.0%
Resolution: 0.01mg/L 0.1%
Accuracy: ±1.5%F.S
Temperature Compensation: 0~45℃
Power Supply: DC 9V
Dimensions: 123mm×72mm×33mm
Dissolved oxygen meter
1. general
2. specifications
3. structure of the meter
4. operation and calibration
5. maintenance
6. appendix
1. General
It’s a portable instruments designed for using at work site. It can measure
dissolved oxygen measurement and temperature.
2. Specification
2.1 measuring range: (0.00-20.0) mg/L Temperature: (0.0-40.0)℃
2.2 automatic temperature range: (0.0-40.0)℃
2.3 accuracy of electric unit: + 0.1mg/L + 1bit
2.4 Accuracy:
Dissolved oxygen:
+0.1mg.L-1 (at same calibration and measuring temperature)
+0.5mg.L-1 (at +10℃ difference between calibration and measuring
temperature)
Temperature: +1℃
2.5 electronic unit stability: 0.1mg/L + 1 bit within 3 hour.
2.6 Stability of the meter: 0.2mg/L + 1 within 1 hour
2.7 Response time: not more than 30 seconds( at 20℃, 90% response)
2.8 Residual current: not more than 0.15mg/L + 1
2.9 Working environment:
Ambient temperature: (0.0-40.0)℃
Relative humidity: not more that 85%
Temperature of samples to be measured: (0.0-40.0)℃
Power supply: AA battery
No obvious electromagnetic interference except terrestrial magnetic fields.
Size: 165x 75 x 30 mm
net Weight: 0.3kg
gross weight: 3kg
3. structure:
3.1 structure of instruments
1. display screen
2. electrode socket
3. back light screen button
4. power on/ off
5. mode key
press this key, you can switch to “dissolved oxygen measure/zero oxygen
calibration/span calibration/salinity setting.
6. set key
press this key to store the value when it is at /zero oxygen
calibration/span calibration/salinity setting.
7. ↑key 8. ↓key adjust the salinity value when it is working at salinity
setting.
9.electrode
When it shows “LOBAT” on screen, you should change battery.
3.2 electrode
1. screw, connect to electrode socket
2. oxygen electrode.
4. operation and calibration
1. put into the battery.
2. press power key, the instruments can start working automaticly, there’s
four mode of working.
You can switch the working mode by # 5 mode key .
When it shows:
It is measuring dissolved oxygen.
Remarks: when the electrode is not connected, or the temperature electrode
doesn’t work, the insruments will show 25℃, the dissolved oxygen will be
measured as 25℃
If it is the first time to use it, or you havn’t used it for quite a long
time, you should calibrate the electrode according to charper No.4.3
4.3 calibration.
New electrode, electrode that not used for over 24 hours,when new solution
is installed, the electrode need to be polarized for 30-60 minutes,
When electrode left the instruments, or the instrument is off for 1 hour,the
electrode should be polarizedfor 5—25 minutes.
4.3.1
Zero oxygen calibration
Put the dissolved oxygen electrode into newly made 5% sodium sulphate
solution, when the instruments is in the mode of measure dissolved oxygen,
press mode key switch to zero oxygen calibration, store the value when the
reading is stable.
For zero calibration, it will shows this in screen:
Then finish zero calibration, press mode key again switch to full
calibration.
Get out the electrode from the solution, clean it with water and dry it with
clean paper. Put the electrode over the surface of stilled water, but not
contact the water.
Press set key to store the value when the reading is stable. full
calibration finish.
Screen is as follows when setting full calibration.
Press mode key again to switch to salinity setting.
Default salinity value is 0.00, choose a right salinity value before measure
dissolved oxygen. You can set the salinity value by pressing key# 7, key #
8.
5. maintenance
The dissolved oxygen electrode should be stored in distilled water. DO NOT
put it into the sodium sulphate solution.
|
|
Dissolved oxygen
meter model: JPBJ-608 D. O. Analyzer
Characteristics:
1. With the function of double displays of dissolved oxygen concentration
value and temperature, dissolved oxygen saturation value and temperature
2.Measuring D.O. concentration, saturation, electrode current and
temperature; With the functions of automatic temperature compensation and
calibration of zero oxygen, full scale, atmosphere pressure and salinity.
3.The meter has the function of protection from electricity cutting off.
With Measuring results can be stored, deleted, viewed and printed. At most
250 sets of data can be stored.
4. With wide screen LCD. It is easy to operate with the prompt facility.
With PC panel of new material, thus the meter has good reliability.
5. With low power consumption design, with the functions of lack of voltage
display, switching off automatically.
6.With RS-232 interface which is connected and with Model TP-16 printer to
print measuring results or connected with computer to communicate.
7.Grade of the case protection is IP65, resistant to water and dirt,
suitable for field operation
8.The electrode system is composed of polarographic oxygen electrode and
temperature electrode.
Specifications
1.Measuring range: Dissolved oxygen concentration: (0.00~19.99)mg/L
Dissolved oxygen saturation: (0.0~199.9)%;
Temperature: (0~40.0)℃.
2.Automatic temperature compensation range: (0.0~40.0) ℃.
3.Accuracy of the meter: D.O. concentration: ±0.3mg/L±1bit(under basic
temperature);
±0.5mg/L (differ: ±15°C from the basic temperature)
D.O. saturation : ±5.0% (under basic temperature);
±10.0% differ: ±15°C from the basic temperature
Temperature: ±0.5℃±1bit.
4.Repeatability of the meter: ≤0.2mg/L.
5.Stability of the meter: not over ±0.2mg/L within one hour.
6.Remaining current: ≤0.1mg/L.
7.Response time ≤20s (90% response at 20.0℃).
8.Salinity calibrating range: (0.0~40.0)g/L.
9.IP65 protection grading |
