Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

thickness gauge TM8810

thickness gauge TM8811

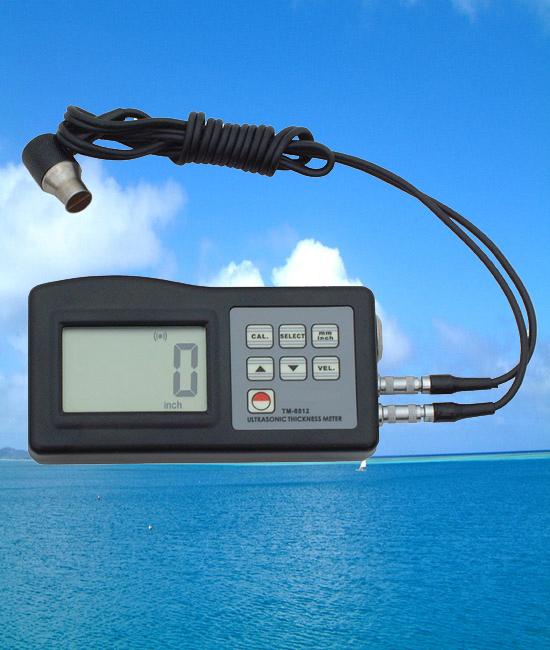

thickness gauge TM8812

Specifications		Model	ultrasonic thickness gauge TM-8812	ultrasonic thickness gauge TM-8811	ultrasonic thickness gauge TM-8810
Measuring range		Metric/Imperial	1.2~225mm 0.05~9inch	1.5~200mm 0.06~8inch	1.5~200mm 0.06~8inch
Operating principle			ULTRASONIC
Materials measured			Any hard materials		Only 11 types of materials
Sound velocity			500~9000m/s		-
Lower limit steel pipes			Φ15×2.0mm, Φ20×3.0mm determined by the transducer
Calibration block			included
Resolution			0.1mm
Accuracy			±(0.5%n+0.1)
RS232C interface			With RS232C
Power supply			4×1.5V AAA(UM-4)	4×1.5V AA(UM-3) Battery
Battery indicator			Low battery indicator
Operating conditions			0~40℃/10~90％RH
Dimension			120×62×30mm	160×68×32
Weight(Not including battery)			164g	208g
Standard delivery	Main unit		1
	5MΦ10 transducer		1
	Couplant		1
	Instruction manual		1
	Carrying case		B04	B01
Optional Accessories	6MΦ6mm thin material probe		Measuring range(steel)︰ 1.0~50.0mm Operating temperature︰-10~+60℃
	5MΦ12 high temperature probe		Measuring ange(steel)︰1.0~225.0mm(normal temperature) Measuring range(steel)︰4.0~100.0mm(high temperature) Operating temperature︰-10~+300℃
	Cable & Software for RS232C interface RS232C		Available only for TM-8812

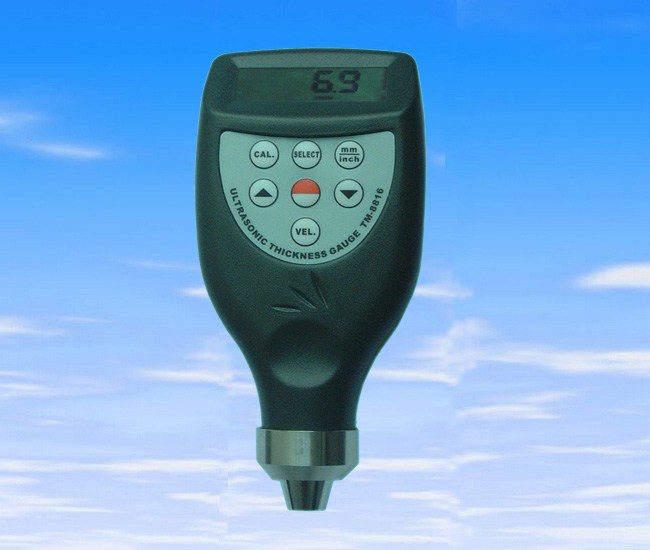

Ulrasonic thickness gauge ( new ) TM8816

Application:

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

Model: TM8816 TM8816C

Measuring range (metric/imperial): 1.0-200mm,0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.1mm(TM8816C 0.01mm)

Accuracy: ±(0.5%n+0.1)

RS232C interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 120x62x30mm
weight: 164g(not including battery)

Applications：
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.

Model: RCTM-01

Case Material	Aluminum Alloy
Display	4 Digit LCD
Operating Principle	Ultrasonic
Measuring Range (metric / Imperial)	0.9~400 mm ( 45 # steel )
Battery Indication	Low Battery Indication
Sound Velocity	1000~9000 m/s
Lower Limit Steel Pipes	Φ20 x 3.0 mm
Calibration Block	Included
Resolution	0.01 mm / 0.1 mm
Accuracy	± (0.5%n + 0.1)
Automatic memory material code and the value of sound velocity
Power off	Auto Power off & Manual Power Off
Operating Conditions	Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply	2 x 1.5 V AA (UM-3) Battery
Dimensions	130 x 76 x 31 mm
Weight	340 g (Not Including Batteries)

Standard Accessories:

1. Main Unit

2. 5MФ8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe

4. USB, RS-232C data cable with software

5. Bluetooth data output with software
