Spectrophotometer

Visable Spectrophotometer    UV-VIS Spectrophotometer   (uv-visable spectrophotometer)   Fluorescence Spectrophotometer

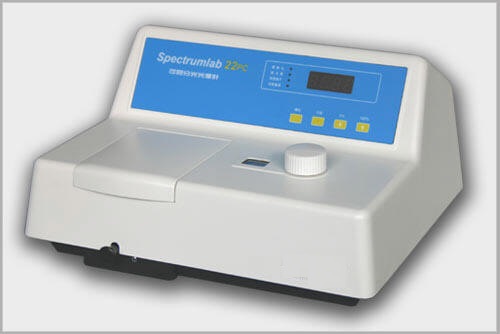

S22PC VISIBLE Spectrophotometer

replacement for item No.721,722

Display Mode: 4 digits LED
Lamp: Halogen-Tungsten Lamp
Interface: RS232 Serial & parallel
Measurement: 370〜320〜190mm
Weight: 9.5Kg

Features
§Curny-terner configuration diffraction grating monochromator, Aspherical light source optics & Precise grid, whole aluminum metal alloy die-castings.
§Pre-aligned lamp and spectral engery correction system.
§Simple & clear keyboard operation is convenient to realize auto 0% & 100% adjustment and error-free T/A transformation.
§Factor setting & direct concentration readout functions.
§Serial & parallel interface,S22PC data processing software package & serial printer are spare parts.
§Spacious sample compartment, 4 position cell rack, adaptable for 1-5 cm optical path rectangular cells.

Specificatios



Wavelength Range:         340-1000nm
Wavelength Accuracy:
        2 nm
Wavelength Reproducibility:
   1 nm
Band width:
           6 nm
Photometric Accuracy:
      0.5%(T)(SRM930D)
Photometric Reproducibility:
    0.3%(T)
Stray Light:
          +0.5%(T)
Scale: TRANS:
         0-199.9%
ABS:
             -0.3-2.999
FACT:
            1-9999
CONC:
            0-9999

S22PC data processing software Features
MODE: T/A/ STANDARD CURVE/ QUANTITATION
DATA PRINT/OUTPUT/SAVE

Standard Package

1) S22pc spectrophotometer
      1 Set
2) 1 cm glass cuvette
          2 Cases
3) 1cm 4 position cuvette rack
      1 PC.
4) Power cable
            1 PC.



5) Operation manual            1 PC.
6) Certificate of quality checking
      1 PC.
7) Fuse (2A)
              1 PC.

Optional Spare Parts and Accessories
1) Fuse (2A/3A)
2) Pre-aligned lamp
3) Glass cuvette 1 cm, 2 cm, 3 cm
5cm
4) 5 cm cuvette rack
suitable for 1-5cm cuvette
5) Spectrophotometer data processing software package
6) RS-232C serial cable
7) Praseodymium-Neodymium optical filter
