Tachometer

What is Tachometer? Tachometers (also called a revolution-counter, rev-counter, or RPM gauge) is an instrument that measures the
rotation speed of a shaft or disk, as in a motor or other machine

Tachometer dt-2234a

tachometer  dt-2234c

tachometer  dt-2236

tachometer  dt-2856

tachometer  dt-2857

tachometer  dt-2858


Tachometer (PHOTO TYPE)

model:dt-2234a
 measurement range:2.5
99,999r/min
 resolution:0.1/1
 accuracy:±(0.05%n+1d)
 memory: max/min/last value
 power supply:4x1.5v aa(um-3)battery
 dimension:190x72x37mm







Tachometer (LASER TYPE)

model:dt-2234c
measurement range:5
99,999r/min
resolution:0.1/1
accuracy:
±(0.05%n+1d)
memory: max/min/last value
power supply:4x1.5v aa(um-3)battery
dimension:190x72x37mm







Tachometer PHOTO/TOUCH TYPE)

 model:dt-2236
 measurement range
 rotative velocity:
 2.5
99,999r/min (photo)
 0.5
19,999r/min (touch)
 surface speed:0.05
1999.9m/min
 0.2
6560ft/min
 resolution:0.01/0.1/1
 accuracy:±(0.05%n+1d)
 memory: max/min/last value
 power supply:4x1.5v aa(um-3)battery
 dimension:215x65x38mm






Tachometer (PHOTO/TOUCH TYPE)

model:dt-2856
 measurement range
 rotative velocity:
 2.5
99,999r/min (laser)
 2.5
19,999r/min (touch)
 resolution:0.1/1
 accuracy:±(0.05%n+1d)
 memory: max/min/last value
 power supply:4x1.5v aa(um-3)battery
 dimension:215x74x32mm

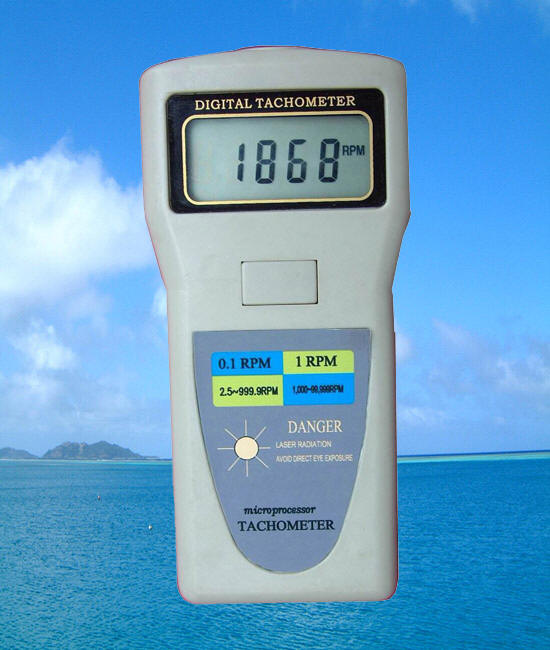

Tachometer (LASER TYPE)

model:dt-2857
 measurement range:2.5
99,999r/min
 resolution:0.1/1
 accuracy:±(0.05%n+1d)
 memory: max/min/last value
 power supply:4x1.5v aa(um-3)battery
 dimension:145x74x32mm







Tachometer (PHOTO/TOUCH TYPE)

model:dt-2858
 measurement range
 rotative velocity:
 2.5
99,999r/min (photo)
 0.5
19,999r/min (touch)
 surface speed:0.05
1999.9m/min
 0.2
6560ft/min laser detection distance: 50-200mm, up to 2000mm
 resolution:0.01/0.1/1
 accuracy:±(0.05%n+1d)
 memory: max/min/last value
 power supply:4x1.5v aa(um-3)battery
 dimension:215x74x32mm
