Air Particle Counter
This air particle counter particle can measure particle in air, with airflow 2.83L/min and 28.3L/min large air flow .






CHY-001 large flow particulate counter 1CFM Particle counterDetailed content

Features:

Sampling Volume

28.3L/min (1Cfm)

Test Size

0.30.513510um

Self-purification Time

≤10min

Error of Particle Size

0.5um 5um ≤±30%

Error of Concentration

0.5um ≤±30%

Deflection of Measurement

≤±10%

Communication Interface

RS232

Max Communication Speed

9600BPS

Light Source

Import laser diode(using hour>30000 hours)

Power Source

AC220V±5% 50HZ

Weight

10Kg

Overall Size

450×270×150L×W×Hmm

Service Environment

Working Environment:1535℃, 10-85%RH



Adjustment Standard

Storage Environment-1050℃, 10-85%RH

GB/T6167-2007 and particulate counter performance test standard

 Clean Class Estimate Standard

JJF-1190-2008 particulate counter standard

ISO14644 FS209E New GMPdynamic/static

Functions

Sampling Period

1~99s user set

Sampling Delay

≤99s

Test Interval

≤999s

Sampling Type

Singleness≤99timesset)、continuous

Data Storage

1000 Record

Sampling Location

1000 Group

Counting Type

Cumulative count, fig2.open-window

Alarm Class

Class100 Class300,000 class(FED209E Standard)

Or 5 9level(ISO14464-1Standard)

Display Type

LCD big screen

Print Type

Built-in temperature-sensitive printer

Display

LCD displaySlope interface,convenient for detecting

Press Key

Functional module interfacefast into detectiong system

Test Stardard

GB/T6167-2007 JJF1190-2008

Clean Class Estimate Standard

ISO14644 FS209E

Standard Accessories

Built-in reset filterisokinetic samping probetripodportable protection caseoperation instructionadjust reportprinter.

Optional Accessories

External humiture sensorData analysis software optical disk and data line.

Sevice Environment
Normal atmosphere, No stange magnetic field
Power Source:A.C220V
±5% 50HZ

Standard Accessories:
1
Isokinetic sampling imported anti-static sampling tubetripod
2. Self-purification filter

3
Temperature-sensitive printing paper 2 pcs
4. Printer
5
Factory calibration reportpacking listoperation instruction

Optional Accessories
1. Data analysis software
2. Humiture sensor
3. Data line


CHY002  handheld air particle counter

Features
Using import semiconductor laser tube and import semiconductor photosensitive tube,assure sensitivity and response speed.
Using import micropump
assure samping volume steadyreduce noise.
The key component-light scattering sensor obviously eliminate intracorporal stray light,improve SNR, test result more precise and reliable.The light scattering sensor got Chinese patent.
Confidence meansurement of this instrument
According to GB/T6167-2007 Standardrealize auto estimate clean class,creatively to auto estimate ≤9 location points clean class.
1000 records stored,free to check previous data.User can optional PC data analysis sofeware,realize data managerment.
User can chose humiture sensor(optional accessories).
Samping volume display as digit,more intuitive and precise.
“Measurement Number”function
realize multipoint managerment.
Lithium battery
more safetycontinuous working 6 hours.

Meets JJF-1190-2008 particulate counter standard
Self-purification time≤10min
Deflection of measurement≤±10%
Error of particulate size 0.5um 5um≤±30%
Error of concentration 0.5um≤±30%
Samping volume and error
2.83L/min ≤±5%
Range of size channel
0.3,0.5,1,3,5,10um,6 channels0.3um SNR≥2.5:1
Max concentration
≤300,000/L
Power DC7.2V
1800mAh.

Performance parameter:

Particle Size

0.3, 0.5,1,3,5,10μm

Light Source

Laser diode(using hour>30000 hours)

Flow

2.83 L /min0.1cfm

Counting Rate

50±10%@0.3μm, 100±10%@0.5μm

Deflection of Measurement

≤±10%

Samping Time

User set (199min)

Samping Delay

User set (199min)

Samping Rate

1~99times or continuous

Alarm Class

Class10 Class300,000 class(FED209E Standard)or 2 9class (ISO14464-1 standard)

Test Type

Singleness/Repeat/Continuous/Timing/Average

Data Storage

1000 records

Error Indicator

Exceed storage,laser died,exceed adjusted flow>±5%,battery died

Communication Interface

USBRS232

Max Communication Speed

12MBPS

Charging Time

3hoursfirst time 12hours

Self-purification

≤10min

Concentration limit

"+/-5% at 2000000 particles/ft3 (71000 Particle/L

Display Type

LCD big screen

Print Type

External printer,Epson ribbon

Sampling Location

1000 group

Counting Type

Cumulative counting,region

Power Source

Chargeable Ni-MH battery6V/2500mAHor AC adapterinput 100240V)

Battery working hour

Continuous working > 6 hours

Overall Size

125*43*230mm

Weight

0.98kg

Environmental Conditions

Working Environment: 1535℃, 10-85%RHStorage Environment-1050℃, 10-85%RH

Standard Accessories

AC adapter,battery charge,reset filter,isokinetic sampling probe,tripod,portable protection case,operation instruction,adjust report,printer

Optional Accessories

External humiture sensorData analysis software optical disk and dataline

Test Standard

JIS-B-9921(1997), ASTM-F649-01, ASTM-F328-98 (NIST traceable) JJG547-1988 GB/T6167-2007 JJF1190-2008

UCL Estimate Sandard

ISO14644 FS209E




CHY002 WITH LCD particle counter

Summarize
Using imported semiconductor laser and photosensitive tube;
The key component-light scattering sensor obviously eliminate intracorporal stray light,improve SNR, test result more precise and reliable.The light scattering sensor obtained Chinese patent.
Confidence meansurement of this instrument
meet GB/T6167-2007 and JJG547-88 Standardrealize auto estimate clean class.
600 records stored,free to check previous data.PC communication interface.
Humiture sensor interface, connect with (optional accessories )humiture sensor can test humiture.
Features

Style

CHY002 Laser big screen

Standard

JJF1190-2008

Air volume

2.83 L /min0.1cfm

Size channels

0.3, 0.5,1,3,5,10μm

Error of particle size

≤±30%

Error of concentration

≤±30%

Repeatability

≤±10%

Self-purification time

≤10min

Light source

Laser diode(Using hour>30000hours)

Power source

AC 220V 50Hz

Weight

3.6kg

Overall size

270*210*120mm

Service environment

Working environment:1535℃, 10-85%RH

Store environment-1050℃, 10-85%RH

Clean Class estimate Standard

ISO14644 FS209E


Functions

Style

CHY002 Laster big screen

Sampling type

1~991~99 times or continuous

Working time

Continuous working 6 hours

Data storage

600 records

Counting type

Cumulative count, fig2.open-window

Alarm class

1 100,000 class(FED209E Standard)

Or 2 9class (ISO14464-1 Standard)

Display type

LCD big screen

Print

Built-in printer

Error indicator

Exceed Max recordLaser died

Exceed adjust flow>±5%)。

Test standard

GB/T6167-2007 JJF1190-2008

Clean Class estimate Standard

ISO14644 FS209E

Standard accessories

Power line,reset filter

Isokinetic sampling probetripodportable protection case

Operater instruction,adjust report, printer

Optional accessories

N/A






CHY002 WITH LED particle counter

Features:(Meet JJF1190-2008 particle counter standard

1.      Self-purification ≤10min

2.       Repeatability≤±10%FS

3.       Error of particle size≤±30%

4.      Error of particle concentration≤±30%

5.       Error of air volume2.83L/Min≤±5%

6.      SafetyInsulation Resistance20M (Normal atmosphere)

Other parameter

1.      Power source:220VAC±10%50HZ

2.       Max particle concentration≤300,000/2.83L

3.      Size channels0.0.10um

4.       Range of purification class100300000 Class

5.        Overall Size270×210×120mm L×W×H

6.       Weight3.5KG

Environmental Conditions

1.      Temperture5℃—35℃

2.      HumidityRH≤75%

3.      Normal atmospherecleanroom

  Others
1. Built-in printer
auto-printer test report.
2. Instruction,certification of inspection,Test report,guarantee card,tripod,printing paper,easy to use.Aluminium alloy package,portable,detachable-retractable measuring tube.

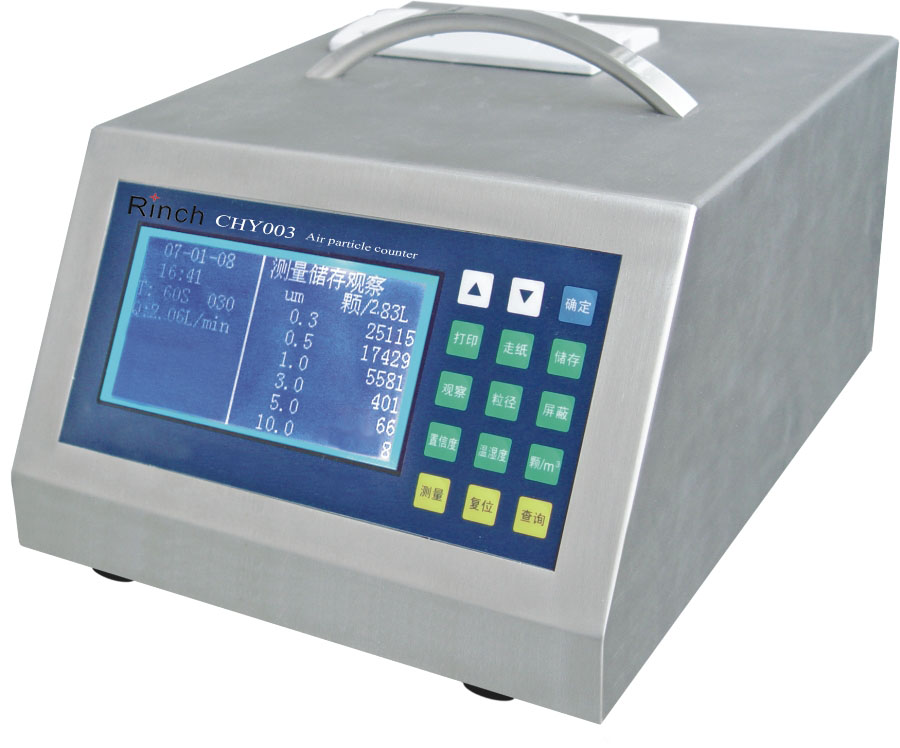

CHY003 stainless AC.DC particle counter

Summarize
1.Using imported semiconductor laser and photosensitive tube,assure sensitivity and response speed.using imported micropump,assure flow steady.
2.The key component-light scattering sensor obviously eliminate intracorporal stray light,improve SNR, test result more precise and reliable.
3.Confidence meansurement of this instrument is the only one in China meet GB/T16292-194896, realize auto estimate clean class.
4.1000 records can be stored,free to check previous data.PC communication interface.
5.Humiture sensor interface,connect with (optional accessories )humiture sensor can test humiture.
6.AC/DC power,bulit-in battery and rechargeable,working continuously 6 hours.
7.Stainless steel,LCD display,smart,light,beautiful,portable,long-service time
8.Our company using American Royco’s particle counter adjust device and Duk’s standard particle,assure each product got strict inspection before leave factory,quality is guaranteed.

Service Environment

Particle concentration limit 400,000/L
Normal atmosphere No strong magnetic field
Power source:A.C220V±5% 50HZ

Features

Size channels

0.3, 0.5,1,3,5,10μm

Light source

Laser diode(using hour>30000hours)

Flow

2.83 L /Min0.1cfm

Deflection of measurement

≤±10%

Error of particle size

0.5um 5um≤±30%

Error of concentration

0.5um≤±30%

Sampling time

User set (199min)

Sampling delay

User set (199min)

Sampling rate

1~99 times or continuous

Alarm class

Class100 Class300,000(FED209E Standard)or 5 9(ISO14464-1)

Test type

Singleness/Repeat/Continuous/Timing/Average

Data storage

1000 records

Error indicator

Exceed storage,laser died,exceed adjusted flow>±5%,battery died

Communication interface

USBRS232

Max communication speed

12MBPS

Charging time

3hoursfirst time 12hours

Self-purification time

≤10min

Concentration limit

"+/-5% at 2000000 particles/ft3 (71000 Particle/L

Display

LCD big screen

Print

Built-in printerEpson ribbon

Sampling location

1000 group

Counting type

Cumulative counting,region

Power source

Rechargeable lithium battery7.4V/5200mAHor AC adapter100240V)

Battery working time

Continuous working> 6 hours

Overall size

220*285*140mm

Weight

3.6kg
